Low

APS-7100 -

Fuente de Alimentación CA, APS-7000 Series, 1000 VA, 310 Vrms, 4.2 A, LAN, USB, RS232

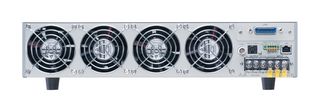

GW INSTEK APS-7100
GW INSTEK APS-7100

La imagen solo tiene fines ilustrativos. Consulte la descripción del producto.

No. Parte Fabricante:
APS-7100
No. Parte Newark
39Y8785
Rango de productos
APS-7000 Series
Hoja de datos técnicos:
(EN)
Ver todos los documentos técnicos

Información del producto

:
-
:
4.2A
:
1000VA
:
APS-7000 Series
:
LAN, USB, RS232
:
-
:
310Vrms
Encontrar productos similares Elija y modifique los atributos anteriores para encontrar productos similares.

Resumen del producto

The APS-7100 is an APS-7000 series 4.2A/230VAC 1000VA programmable linear AC power supply with arbitrary waveform function, surge/dip control for output artificial surges or dips in voltage to a DUT. 10 sets of the sequence mode, simulate mode and programming mode. 10 sets of preset allow users to store ten settings. Support sequence, simulate and program to automatically execute output after the equipment power is on. Supports SCPI emulation and LabVIEW driver. Standard interface like USB host, LAN. Support remoter control of sync output, program mode signal output, trigger In/Out, output on/off. Measurement function comprises voltage, current, power, apparent power, current(peak), IPKH, frequency, power factor, crest factor. Ideal for user to produce high complicated waveform and transient waveform to verify electronic product operation under adverse condition.
  • 4.3" TFT LCD display
  • OCP/OTP/OHP Protection
  • Arbitrary waveform function

Aplicaciones

Test y Medida, Administración de Potencia
