99-4225-00-07
Circular Connector, 693 Series, Cable Mount Plug, 7 Contacts, Solder Pin

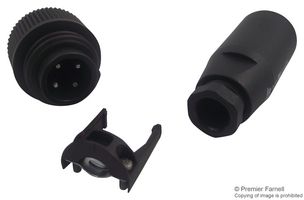

Image is for illustrative purposes only. Please refer to product description.
ManufacturerBINDER
Manufacturer Part No99-4225-00-07
Newark Part No.75R4484
Product Range693 Series
Technical Datasheet
163 In Stock
Need more?
13 Delivery in 1-3 Business Days(US stock)
150 Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST Standard Shipping
| Quantity | Price |
|---|---|
| 1+ | $21.600 |
| 15+ | $19.830 |
| 50+ | $18.630 |
| 100+ | $17.670 |
| 250+ | $16.970 |
Price for:Each
Minimum: 1
Multiple: 1
$21.60
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBINDER
Manufacturer Part No99-4225-00-07
Newark Part No.75R4484
Product Range693 Series
Technical Datasheet
Product Range693 Series
Circular Connector Shell StyleCable Mount Plug
No. of Contacts7Contacts
Circular Contact TypeSolder Pin
Coupling Style-
Connector Body Material-
Connector Body Plating-
Contact MaterialBrass
Contact PlatingSilver
SVHCLead (14-Jun-2023)
Product Overview
The 99-4225-00-07 is a 6+PE-contact 250V/10A unshielded male Circular Connector with silver-plated brass contacts, PBT (UL94V-0) contact body and housing. The 693 series plug with RD 24 screw locking system, solder termination, cable mounting style. It accepts 18AWG (0.75mm²) wire, 6 to 9.5mm cable outlet.
- 4000V Rated impulse voltage
- ≤5mΩ Volume resistivity
- <gt/>500 mating cycles Mechanical operation
- IP67 Protection rating
Applications
Power Management, Industrial
Technical Specifications
Product Range
693 Series
No. of Contacts
7Contacts
Coupling Style
-
Connector Body Plating
-
Contact Plating
Silver
Circular Connector Shell Style
Cable Mount Plug
Circular Contact Type
Solder Pin
Connector Body Material
-
Contact Material
Brass
SVHC
Lead (14-Jun-2023)
Technical Docs (1)
Associated Products
8 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (14-Jun-2023)
