RMSP-DT-12

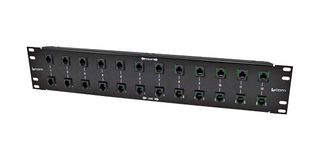

RMSP-DT-12 is a 19" rack mount 12-line Hi-power telephone/DSL/T1 lightning surge protector features high performance 3-stage lightning protector that provides superior protection for up to 12 DSL, Telephone and T1 lines from transients and surges. It is designed to convert into a failsafe mode in the rare case of a catastrophic surge or lightning event. For this mode, the resistors in the second stage will fuse and portions of the diode array will short. This effectively disconnects the line from sensitive equipment thus limiting damage. It features 24 RJ11 jacks for ease of installation. The 2U rack panel features a clean, system wide mounting of the circuit protectors and may be installed in the rear of the 19inch rack where they are normally required for line in and out. Typical applications are DSL/telephone lines, T1/E1/J1 telco lines.

• Superior to diode or TVS only based designs
