LP0701N3-G
Power MOSFET, P Channel, 16.5 V, 500 mA, 1.3 ohm, TO-92, Through Hole

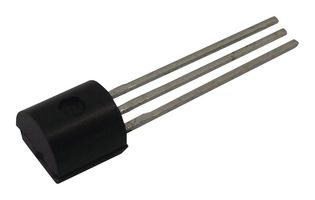

Image is for illustrative purposes only. Please refer to product description.
150 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown
| Quantity | Price |
|---|---|
| 1+ | $1.470 |
| 10+ | $1.350 |
| 25+ | $1.350 |
| 50+ | $1.350 |
| 100+ | $1.250 |
Price for:Each
Minimum: 1
Multiple: 1
$1.47
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMICROCHIP
Manufacturer Part NoLP0701N3-G
Newark Part No.53Y4189
Technical Datasheet
Channel TypeP Channel
Transistor PolarityP Channel
Drain Source Voltage Vds16.5V
Continuous Drain Current Id500mA
Drain Source On State Resistance1.3ohm
On Resistance Rds(on)1.3ohm
Transistor Case StyleTO-92
Transistor MountingThrough Hole
Rds(on) Test Voltage5V
Gate Source Threshold Voltage Max700mV
Power Dissipation1W
Power Dissipation Pd1W
No. of Pins3Pins
Operating Temperature Max150°C
Product Range-
Qualification-
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
Channel Type
P Channel
Drain Source Voltage Vds
16.5V
Drain Source On State Resistance
1.3ohm
Transistor Case Style
TO-92
Rds(on) Test Voltage
5V
Power Dissipation
1W
No. of Pins
3Pins
Product Range
-
SVHC
No SVHC (21-Jan-2025)
Transistor Polarity
P Channel
Continuous Drain Current Id
500mA
On Resistance Rds(on)
1.3ohm
Transistor Mounting
Through Hole
Gate Source Threshold Voltage Max
700mV
Power Dissipation Pd
1W
Operating Temperature Max
150°C
Qualification
-
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
