D5A-1100
Limit Switch, Plunger, SPST-NC, 10 mA, 24 V, 0.29 N

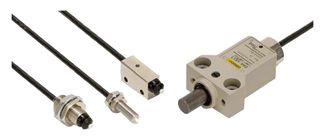

Image is for illustrative purposes only. Please refer to product description.
ManufacturerOMRON INDUSTRIAL AUTOMATION
Manufacturer Part NoD5A-1100
Newark Part No.22C5452
Technical Datasheet
No Longer Available
Product Information
ManufacturerOMRON INDUSTRIAL AUTOMATION
Manufacturer Part NoD5A-1100
Newark Part No.22C5452
Technical Datasheet
Limit Switch ActuatorPlunger
Contact ConfigurationSPST-NC
Contact Current AC Max10mA
Contact Voltage AC Max24V
Operating Force Max0.29N
Product Range-
Contact Current DC Max10mA
Contact Voltage DC Max12V
SVHCTo Be Advised
Product Overview
The D5A-1100 is a single-pole single-throw (SPST) NC high-precision Limit Switch for detecting micron-unit displacement. This switch features M5 pin plunger actuator and 1m pre-wired cable lead outlet.
- IP40 Protection rating
- 1000m/s² Maximum mechanical shock resistance
- 300m/s² Maximum malfunction shock resistance
- 1000000 operations Minimum electrical durability
- 10000000 operations Minimum Mechanical durability
- 100MΩ at 250VDC Minimum insulation resistance
- 4Ω Maximum initial contact resistance
- 1μm Maximum Repeat accuracy
Applications
Industrial
Technical Specifications
Limit Switch Actuator
Plunger
Contact Current AC Max
10mA
Operating Force Max
0.29N
Contact Current DC Max
10mA
SVHC
To Be Advised
Contact Configuration
SPST-NC
Contact Voltage AC Max
24V
Product Range
-
Contact Voltage DC Max
12V
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
