ERF8-010-05.0-S-DV-TR
Mezzanine Connector, High-Speed, Receptacle, 0.8 mm, 2 Rows, 20 Contacts, Surface Mount

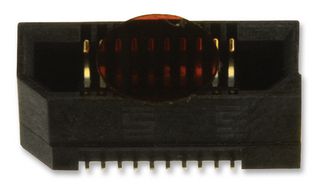

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSAMTEC
Manufacturer Part NoERF8-010-05.0-S-DV-TR
Newark Part No.91P7132
Product RangeERF8 Series
Technical Datasheet
474 In Stock
Delivery in 2-3 Business days(Supplier Direct Ship)
Order before 8pm EST Standard Shipping
| Quantity | Price |
|---|---|
| 1+ | $4.930 |
| 10+ | $4.560 |
| 25+ | $4.320 |
| 50+ | $3.970 |
| 100+ | $3.870 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$4.93
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSAMTEC
Manufacturer Part NoERF8-010-05.0-S-DV-TR
Newark Part No.91P7132
Product RangeERF8 Series
Technical Datasheet
Product RangeERF8 Series
Mezzanine Connector TypeReceptacle
Pitch Spacing0.8mm
No. of Rows2Rows
No. of Contacts20Contacts
Connector MountingSurface Mount
Contact MaterialBeryllium Copper
SVHCNo SVHC (21-Jan-2025)
Product Overview
ERF8-010-05.0-S-DV-TR is a shielded, 0.80mm Edge Rate® rugged high speed socket. The ERF8 is a board-mounted socket designed for use in high-speed systems. The ERF8 uses the Edge Rate® contact system which is designed for applications requiring high-mating cycles and 56Gbps PAM4 performance. The ERF8 mates with ERM8 board-mounted headers.
- 10 position, 5mm lead style
- 30µ" selective gold in contact area matte tin on tail
- Double vertical
- 360° metal shielding for reduced EMI
- High mating cycles to 1,000
- 1.5mm contact wipe
- Rugged Edge Rate® contacts optimized for signal integrity performance
