UHM-S110B3-5AP1-TG30
Connector, Ultra Hard Metric (UHM) Series, 110 Contacts, 2 mm, Receptacle, Press Fit, 6 Rows

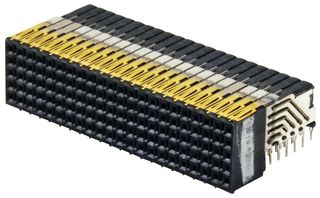

Image is for illustrative purposes only. Please refer to product description.
Manufacturer3M
Manufacturer Part NoUHM-S110B3-5AP1-TG30
Newark Part No.24R2688
Product RangeUltra Hard Metric (UHM) Series
Also Known AsGTIN UPC EAN: 00051111470275 70010021320
Technical Datasheet
No Longer Available
Product Information
Manufacturer3M
Manufacturer Part NoUHM-S110B3-5AP1-TG30
Newark Part No.24R2688
Product RangeUltra Hard Metric (UHM) Series
Also Known AsGTIN UPC EAN: 00051111470275 70010021320
Technical Datasheet
Product RangeUltra Hard Metric (UHM) Series
Connector TypeBackplane
No. of Contacts110Contacts
Pitch Spacing2mm
Card Edge / Backplane Connector TypeBackplane
Contact Termination TypePress Fit
No. of Rows6Rows
Row Pitch2mm
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
SVHCTo Be Advised
Technical Specifications
Product Range
Ultra Hard Metric (UHM) Series
No. of Contacts
110Contacts
Card Edge / Backplane Connector Type
Backplane
Contact Termination Type
Press Fit
Row Pitch
2mm
Contact Plating
Gold Plated Contacts
Connector Type
Backplane
Pitch Spacing
2mm
Gender
Receptacle
No. of Rows
6Rows
Contact Material
Copper Alloy
SVHC
To Be Advised
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:To Be Advised
