NSL-32SR3
Optocoupler, Photocell / LDR Output, Axial, 4 Pins, 25 mA, 2 kV

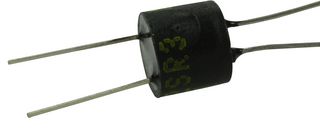

Image is for illustrative purposes only. Please refer to product description.
1,046 In Stock
Need more?
130 Delivery in 1-3 Business Days(US stock)
916 Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST Standard Shipping
| Quantity | Price |
|---|---|
| 1+ | $2.730 |
| 10+ | $2.520 |
| 25+ | $2.520 |
| 50+ | $2.520 |
| 100+ | $2.520 |
| 300+ | $2.340 |
Price for:Each
Minimum: 1
Multiple: 1
$2.73
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerADVANCED PHOTONIX
Manufacturer Part NoNSL-32SR3
Newark Part No.71C0280
Technical Datasheet
Optocoupler Case StyleAxial
No. of Pins4Pins
Forward Current If Max25mA
Isolation Voltage2kV
Product Range-
SVHCTo Be Advised
Product Overview
The NSL-32SR3 from Advanced Photonix is a axial leaded optocoupler which consists of an LED input optically coupled to a photocell. The photocell resistance is high when the LED current is “off” and low when the LED current is “on”.
- Compact and moisture resistant package
- Low LED current
- Low “on” resistance
- Fast rise and decay time
- Passive resistance output
- Best distortion characteristics
- Peak isolation voltage of 2000V
- Power dissipation of 50mW
- Operating temperature range from -40°C to 75°C
Applications
Industrial
Technical Specifications
Optocoupler Case Style
Axial
Forward Current If Max
25mA
Product Range
-
No. of Pins
4Pins
Isolation Voltage
2kV
SVHC
To Be Advised
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:No
RoHS Phthalates Compliant:To be advised
SVHC:To Be Advised
