AIR-150-S44A1
AI Inference System, i5-1345UE, 4.6GHz, 64GB, Intel Core, Raptor Lake

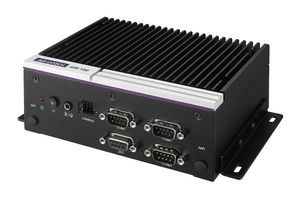

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Delivery estimated post order confirmations.You will be charged on despatch.
| Quantity | Price |
|---|---|
| 1+ | $1,347.500 |
Price for:Each
Minimum: 1
Multiple: 1
$1,347.50
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerADVANTECH
Manufacturer Part NoAIR-150-S44A1
Newark Part No.03AM8896
Technical Datasheet
Processor Core TypeIntel Core
Core Numberi5-1345UE
Silicon Family NameRaptor Lake
Processor Speed4.6GHz
RAM Memory Size64GB
Kit ContentsAIR-150 Unit, 2x Wallmount, User Manual, WISE-DeviceOn Package, Phoenix Connector/Canbus Counterpart
InterfacesCANBus, DIO, HDMI, LAN1, LAN2, RS232, RS422, RS485, USB 2.0, USB 3.2
Operating SystemUbuntu Linux 22.04, Windows 10, Windows 11 IoT
Operating Temperature Range-20°C to +60°C
FanlessYes
Product Overview
AIR-150-S44A1 is a 26 TOPS AI inference system Intel 13th Gen. with Hailo-8 AI. It features flexible expansion with 3x M.2:M key 2280 (NVMe storage), E key 2230 (Wi-Fi), B key 3042 (Hailo AI). It is suitable for industrial usage: -20 to 60°C wide temperature and 12-24V wide voltage support.
- 13th gen. Intel core i3/i5 up to 14watt with 10 cores
- Compact fanless 156 x 112 x 60mm dimension, dual 4K lockable HDMI 2.0b, 4096x2160 resolution
- Vertical I/O: 3x COM/1x DIO/2x CANBus/2x LAN/4x USB
- Rich AI toolkits for runtime integration and model deployment
- Intel Core i5-1345U CPU
- UP to 64GB memory, 1x SATA slim storage, 1x M.2 Halio AI module, 3 x 3.2 USB
- 2 (1GbE/2.5GbE LAN, 2 CAN bus, 1 DIO, 3 RS-232/422/485
- E-key 2230 & B-Key 3042 & M-Key 2280
- Mic-in/lLine-out audio
- UL, CB, CCC, BSMI safety certification
Contents
1 x AIR-150 unit, 2 x Wallmount, 1 x User manual (simplified Chinese), 1 x WISE-DeviceOn package, 1x Phoenix connector counterpart, 1x Canbus counterpart.
Technical Specifications
Processor Core Type
Intel Core
Silicon Family Name
Raptor Lake
RAM Memory Size
64GB
Interfaces
CANBus, DIO, HDMI, LAN1, LAN2, RS232, RS422, RS485, USB 2.0, USB 3.2
Operating Temperature Range
-20°C to +60°C
Core Number
i5-1345UE
Processor Speed
4.6GHz
Kit Contents
AIR-150 Unit, 2x Wallmount, User Manual, WISE-DeviceOn Package, Phoenix Connector/Canbus Counterpart
Operating System
Ubuntu Linux 22.04, Windows 10, Windows 11 IoT
Fanless
Yes
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:To be advised
RoHS Phthalates Compliant:To be advised
Download Product Compliance Certificate
Product Compliance Certificate
