                      OX 5042B W/MN251T KIT

                      Oscilloscope, w/MN251T & MF3000-24-1-1 (BNC), OX 5042B Series, 2 Channel, 40 MHz, 2 GSPS, 2.5 kpts

                      AEMC INSTRUMENTS OX 5042B W/MN251T KIT
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerAEMC INSTRUMENTS
                      Manufacturer Part NoOX 5042B W/MN251T KIT
                      Newark Part No.94AC3068
                      Product RangeOX 5042B Series
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      2 In Stock

                      Need more?

                      Same day shipping
                      Order before 9pm EST standard shipping
                      QuantityPrice
                      1+$3,729.000
                      Price for:Each
                      Minimum: 1
                      Multiple: 1
                      $3,729.00
                      Enter Your Part No/Line Note
                      Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                      This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                      Product Information

                      ManufacturerAEMC INSTRUMENTS
                      Manufacturer Part NoOX 5042B W/MN251T KIT
                      Newark Part No.94AC3068
                      Product RangeOX 5042B Series
                      Technical Datasheet

                      Data Sheet

                      Product RangeOX 5042B Series
                      Scope Channels2 Channel
                      Bandwidth40MHz
                      Sampling Rate2GSPS
                      Display Memory Depth2.5 kpts
                      Calculated Rise Time-
                      Scope Display TypeTFT LCD Color
                      Kit ContentsOscilloscope, USB Cable, 2x of 10 ft Leads, Alligator Clips & Probes, BNC Adaptor, 10:1 Probe, Case
                      Manufacturer Warranty3 Years
                      Plug TypeUS
                      SVHCNo SVHC (16-Jul-2019)

                      Product Overview

                      OX 5042B W/MN251T KIT is a hand-held portable oscilloscope model OX 5042B with MN251T & MF 3000-24-1-1 (BNC output). This compact, shockproof, IP54, 3-in-1 Handscope Model OX 5042B can be comfortably held in one hand. The handscope is an ergonomically designed instrument equipped with a 3.5-inch color screen with LED backlighting for a precise and crisp data display. Integrated multilingual help screens are available at all times to make it simpler to use. 2MB of storage are available for recording data. In the multimeter mode, it is possible to store graphic recordings of 2700 measurements from 5 min to 1 month. Communication via isolated USB SCPI protocol. This makes it simple to program the instrument remotely with the supplied SX-METRO software. This product has been developed using an Eco-Design approach to reduce its environmental impact and is supplied with a 3-year warranty.

                      • Oscilloscope, 2 fully isolated channels, 40MHz bandwidth, vertical sensitivity 5mV to 200V/div
                      • 2 fully isolated channel multimeter, 8000-count display, with power measurements
                      • 2 fully isolated channel harmonic analyzer, up to 31st harmonic (frequency from 40 to 450Hz)
                      • 5mV to 200V/div vertical sensitivity
                      • Integrated help function with menus and online support in 14 languages for easy, accessible use
                      • Displays 2,500 real acquisition points on screen for detailed and accurate waveform viewing
                      • Safety according to IEC 61010-1 600 V CAT III / EMC according to EN 61000-3 & EN 61326-1

                      Contents

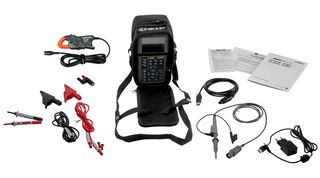

                      Handheld portable oscilloscope, Field case, USB wall plug 5V, 2A, USB cable, Set of (2) 10ft color-coded (red/black) leads, Set of (2) color-coded (red/black) alligator clips, Set of (2) color-coded (red/black) probes, BNC adapter, (1) probe 10:1 600 V BNC male, (1) AC current probe Model MN251T, MiniFlex® Sensor 3000-24-1-1, (6) 1.2V NiMH rechargeable batteries, Printed quick start guide, USB drive with software and user manual.

                      Technical Specifications

                      Product Range

                      OX 5042B Series

                      Bandwidth

                      40MHz

                      Display Memory Depth

                      2.5 kpts

                      Scope Display Type

                      TFT LCD Color

                      Manufacturer Warranty

                      3 Years

                      SVHC

                      No SVHC (16-Jul-2019)

                      Scope Channels

                      2 Channel

                      Sampling Rate

                      2GSPS

                      Calculated Rise Time

                      -

                      Kit Contents

                      Oscilloscope, USB Cable, 2x of 10 ft Leads, Alligator Clips & Probes, BNC Adaptor, 10:1 Probe, Case

                      Plug Type

                      US

                      Technical Docs (2)

                      Technical Data Sheet EN

                      User Manual EN
