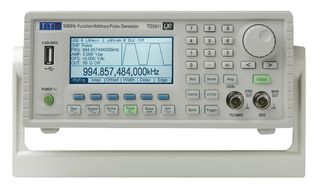

TG2511
Function Generator, Arbitrary / Pulse, 1 Channel, 25 MHz, TGxx11 Series
Image is for illustrative purposes only. Please refer to product description.
ManufacturerAIM-TTI INSTRUMENTS
Manufacturer Part NoTG2511
Newark Part No.05X0069
Product RangeTGxx11 Series
Technical Datasheet
No Longer Available
Product Information
ManufacturerAIM-TTI INSTRUMENTS
Manufacturer Part NoTG2511
Newark Part No.05X0069
Product RangeTGxx11 Series
Technical Datasheet
Signal Generator TypeArbitrary, Function, Pulse
No. of Channels1 Channel
Product RangeTGxx11 Series
Bandwidth25MHz
Signal Generator ModulationAM, FM, FSK, PM, PWM
Manufacturer Warranty3 Years
Plug TypeUS
SVHCNo SVHC (21-Jan-2025)
Product Overview
The TG2511 represents the state-of-the-art in DDS based function generators. The TG2511 significantly outperforms other generators in its price range, not just because of its frequency range, but because of its all round performance and features representing exceptional value for those with lower frequency requirements.
- Up to 25MHz sine and square, 1µHz or 14 digit resolution
- Arbitrary waveforms of up to 128K points at up to 125MS/s
- True pulse generator with variable delay and variable rise/fall
- Internal & external digital modulation, AM, FM, PM, PWM, FSK
- Programmable via USB and LAN interfaces
Applications
Sensing & Instrumentation, Signal Processing, Test & Measurement
Technical Specifications
Signal Generator Type
Arbitrary, Function, Pulse
Product Range
TGxx11 Series
Signal Generator Modulation
AM, FM, FSK, PM, PWM
Plug Type
US
No. of Channels
1 Channel
Bandwidth
25MHz
Manufacturer Warranty
3 Years
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
