TG315

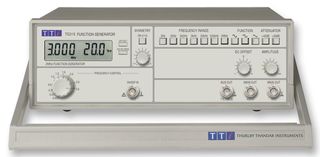

Function Generator,1 Channel, 3 MHz, TG300 Series
Image is for illustrative purposes only. Please refer to product description.
ManufacturerAIM-TTI INSTRUMENTS
Manufacturer Part NoTG315
Newark Part No.71R7100
Product RangeTG300 Series
Technical Datasheet
No Longer Available
Product Information
ManufacturerAIM-TTI INSTRUMENTS
Manufacturer Part NoTG315
Newark Part No.71R7100
Product RangeTG300 Series
Technical Datasheet
Signal Generator TypeFunction
No. of Channels1 Channel
Product RangeTG300 Series
Bandwidth3MHz
Signal Generator ModulationAM
Manufacturer Warranty3 Years
Plug TypeUS
SVHCNo SVHC (08-Jul-2021)
Product Overview
The TG315 includes dual digital display of frequency and amplitude, along with the basic generator functions of sine, square & triangle waveforms, variable DC offset, variable symmetry and an external sweep input.
- 0.03Hz to 3MHz frequency range
- Simultaneous display of frequency & amplitude
- Very high waveform quality at all frequencies & levels
- 2mV to 20V pk-pk from 50 or 600
- Auxiliary TTL/CMOS output
- Variable symmetry with constant frequency
- Variable DC offset with zero detent
- 1000:1 frequency change by vernier or sweep voltage
Applications
Sensing & Instrumentation, Signal Processing, Test & Measurement
Technical Specifications
Signal Generator Type
Function
Product Range
TG300 Series
Signal Generator Modulation
AM
Plug Type
US
No. of Channels
1 Channel
Bandwidth
3MHz
Manufacturer Warranty
3 Years
SVHC
No SVHC (08-Jul-2021)
