142270-3
Jumper (Busbar), Shunt, PCB Connectors, 2 Positions, 2.54 mm

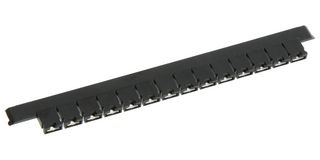

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No142270-3
Newark Part No.01AH0138
Technical Datasheet
12 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown
| Quantity | Price |
|---|---|
| 1+ | $4.690 |
| 10+ | $4.480 |
| 25+ | $4.230 |
| 50+ | $3.970 |
| 100+ | $3.820 |
| 250+ | $3.480 |
Price for:Card of 14
Minimum: 1
Multiple: 1
$4.69
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No142270-3
Newark Part No.01AH0138
Technical Datasheet
Accessory TypeShunt
For Use WithPCB Connectors
No. of Positions2Positions
Pitch Spacing2.54mm
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 0-0142270-3 from TE Connectivity is an AMPMODU MOD IV two contact shunt connector assembly without handle. This open top style black colour shunt connector has a centreline spacing of 2.54mm (0.1inch).
- Contact current rating of 3A
- Beryllium copper contacts with tin plating
- Glass filled polybutylene terephthalate (PBT) housing
- Operating temperature range from -40°C to 85°C
- UL recognized
- UL94 V-0 flammability rating
- Height of 6.3mm (0.248inch)
- Contact mating area plating thickness is 3µm (118.1µinch)
Technical Specifications
Accessory Type
Shunt
No. of Positions
2Positions
Product Range
-
For Use With
PCB Connectors
Pitch Spacing
2.54mm
SVHC
No SVHC (21-Jan-2025)
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
