390088-1
Jumper (Busbar), Shunt, Shunt, 0.100" Pitch Headers, 2 Positions, 2.54 mm

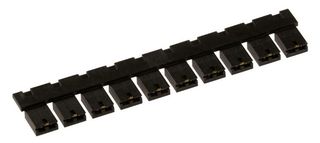

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No390088-1
Newark Part No.90B3200
Technical Datasheet
2,194 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.507 |
| 10+ | $0.473 |
| 25+ | $0.473 |
| 50+ | $0.466 |
| 100+ | $0.445 |
| 500+ | $0.431 |
| 1000+ | $0.421 |
Price for:Each
Minimum: 1
Multiple: 1
$0.51
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No390088-1
Newark Part No.90B3200
Technical Datasheet
Accessory TypeShunt
For Use With0.100" Pitch Headers
No. of Positions2Positions
Pitch Spacing2.54mm
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 390088-1 is a 2-position Shunt Jumper (Busbar) with phosphor bronze contact base and gold plated mating area finish. The open top dual beam shunt comes with a black polyester (GF) housing. It is suitable for use with the PCB board-to-board connectors.
- One-piece contact construction
- High normal forces
- 10000MΩ Insulation resistance
- 20mΩ Termination resistance
- -65 to 105°C Operating temperature range
Applications
Industrial
Technical Specifications
Accessory Type
Shunt
No. of Positions
2Positions
Product Range
-
For Use With
0.100" Pitch Headers
Pitch Spacing
2.54mm
SVHC
No SVHC (21-Jan-2025)
Alternatives for 390088-1
1 Product Found
Associated Products
3 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
