5145154-4

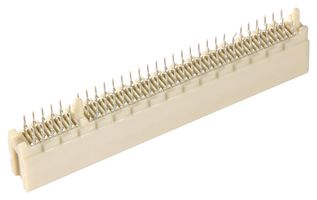

Card Edge Connector, Dual Side, 1.57 mm, 120 Contacts, Through Hole Mount, Straight
Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No5145154-4
Newark Part No.25M4318
Product RangeStandard Edge Series
Technical Datasheet
1,483 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $5.910 |
| 10+ | $5.020 |
| 25+ | $4.610 |
| 50+ | $4.370 |
| 100+ | $4.170 |
| 500+ | $3.960 |
| 1000+ | $3.790 |
| 2500+ | $3.620 |
Price for:Each
Minimum: 1
Multiple: 1
$5.91
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No5145154-4
Newark Part No.25M4318
Product RangeStandard Edge Series
Technical Datasheet
Card Edge Connector TypeDual Side
No. of Contacts120Contacts
Card Thickness1.57mm
Pitch Spacing1.27mm
No. of Contacts120 Contacts
Connector MountingThrough Hole Mount
Connector Body OrientationStraight
No. of Rows2Rows
Contact Plating - Mating Side30µ" Gold Plated Contacts
Connector Body MaterialThermoplastic Body
Product RangeStandard Edge Series
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 5145154-4 is a 120-way 2-row Vertical Card Edge Connector with gold-plated phosphor bronze contacts and through hole PCB mounting. This PCI series connector comes with tin over nickel plated solder tail and natural high thermoplastic housing.
- UL94V-0 Flammability rating
- 203VAC Voltage rating
- -55 to 85°C Operating temperature range
Applications
Industrial
Technical Specifications
Card Edge Connector Type
Dual Side
Card Thickness
1.57mm
No. of Contacts
120 Contacts
Gender
Receptacle
No. of Rows
2Rows
Connector Body Material
Thermoplastic Body
SVHC
No SVHC (21-Jan-2025)
No. of Contacts
120Contacts
Pitch Spacing
1.27mm
Connector Mounting
Through Hole Mount
Connector Body Orientation
Straight
Contact Plating - Mating Side
30µ" Gold Plated Contacts
Product Range
Standard Edge Series
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Product traceability
