CL-210

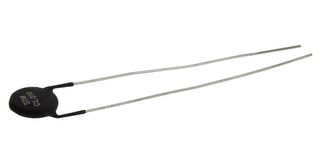

Thermistor, ICL NTC, 30 ohm, -25% to +25%, Radial Leaded, CL Series
Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMPHENOL ADVANCED SENSORS
Manufacturer Part NoCL-210
Newark Part No.96F3302
Product RangeCL Series
Technical Datasheet
999 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.990 |
| 10+ | $0.944 |
| 25+ | $0.917 |
| 50+ | $0.892 |
| 100+ | $0.887 |
| 250+ | $0.847 |
Price for:Each
Minimum: 1
Multiple: 1
$0.99
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMPHENOL ADVANCED SENSORS
Manufacturer Part NoCL-210
Newark Part No.96F3302
Product RangeCL Series
Technical Datasheet
Product RangeCL Series
Disc Size10.16mm
Resistance (25°C)30ohm
ApprovalsUL
Maximum Energy Rating at 25°C4.32J
Maximum Steady State Current at 25°C1.5A
SVHCLead
Product Overview
CL-210 is a CL series NTC inrush current limiter, disc thermistor with uninsulated lead-wires are used to control inrush current when switching power supplies. The main purpose of limiting inrush current is to prevent components in series with the input to the DC/DC converter from being damaged. Typically, inrush protection prevents nuisance blowing of fuses or breakers as well as welding of switch contacts.
- UL approval (UL 1434 file# E82830)
- Low cost, solid state device for inrush current suppression and excellent mechanical strength
- Wide operating temperature range from -58°F to 347°F (-50°C to 175°C)
- Suitable for PCB mounting
- Low steady resistance and accompanying power loss
- Small physical size offers design-in benefits over large passive components
- Best-in-class capacitance rating
- 30 ohm resistance at 25°C and 1.5A RMS max steady state current
- 600VAC RMS at 120 and 150VAC RMS at 240
- 4.32joules max energy
Technical Specifications
Product Range
CL Series
Resistance (25°C)
30ohm
Maximum Energy Rating at 25°C
4.32J
SVHC
Lead
Disc Size
10.16mm
Approvals
UL
Maximum Steady State Current at 25°C
1.5A
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
