122414
RF / Coaxial Connector, TNC Coaxial, Right Angle Plug, Crimp, 50 ohm, RG8X , LMR-240, Brass
100 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | $13.350 |
| 5+ | $12.980 |
| 10+ | $12.600 |
| 25+ | $11.600 |
| 50+ | $11.410 |
| 100+ | $10.820 |
| 250+ | $10.420 |
Product Information
Product Overview

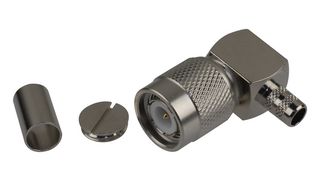

The 122414 is a TNC right angle Crimp Plug with gold-plated brass contacts, nickel-plated brass body and a PTFE insulator. The TNC connector series is a miniature, threaded weatherproof series with a constant 50Ω impedance and a frequency range of DC-11GHz. Threaded coupling interface ensures connector with not de-couple in vibration-intense applications. The TNC connector is produced with standard polarity. This RF connector is designed for Belden 9258 and LMR-240 cable.
- Durable construction
- Standard thread direction
- 5000MΩ Minimum insulation resistance
- 500V Peak voltage rating
Applications
RF Communications, Communications & Networking, Industrial, Wireless, Sensing & Instrumentation
Technical Specifications
TNC Coaxial
Crimp
RG8X , LMR-240
Gold Plated Contacts
Cable Mount
Lead
Right Angle Plug
50ohm
Brass
11GHz
-
Technical Docs (1)
Legislation and Environmental
RoHS
RoHS
Product Compliance Certificate
