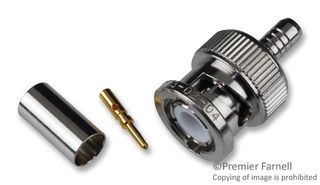

RF / Coaxial Connector, BNC Coaxial, Straight Plug, Crimp, 50 ohm, RG142, RG223, RG400, Brass
Image is for illustrative purposes only. Please refer to product description.
95 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $13.850 |
| 5+ | $13.570 |
| 10+ | $12.840 |
| 25+ | $11.880 |
| 50+ | $11.600 |
| 100+ | $10.470 |
| 250+ | $9.910 |
Price for:Each
Minimum: 1
Multiple: 1
$13.85
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMPHENOL RF
Manufacturer Part No031-326
Newark Part No.39F1442
Technical Datasheet
Connector TypeBNC Coaxial
Connector Body StyleStraight Plug
Coaxial TerminationCrimp
Impedance50ohm
Coaxial Cable TypesRG142, RG223, RG400
Contact MaterialBrass
Contact PlatingGold Plated Contacts
Frequency Max4GHz
Connector MountingCable Mount
Product Range-
SVHCLead
Product Overview
The 31-326 is a straight BNC Coaxial Plug with gold-plated brass contact. This coaxial plug is suitable for RG142, RG223 and RG400 cable. It features crimp coaxial termination and 4GHz maximum frequency.
- Nickel-plated brass body
- PTFE natural insulator
- 500-cycle Minimum durability
Applications
RF Communications
Technical Specifications
Connector Type
BNC Coaxial
Coaxial Termination
Crimp
Coaxial Cable Types
RG142, RG223, RG400
Contact Plating
Gold Plated Contacts
Connector Mounting
Cable Mount
SVHC
Lead
Connector Body Style
Straight Plug
Impedance
50ohm
Contact Material
Brass
Frequency Max
4GHz
