ACPS-GB-AU

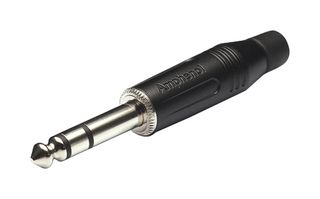

Phone Audio Connector, Stereo, 3 Contacts, Plug, 6.35 mm, Cable Mount, Gold Plated Contacts
Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMPHENOL AUDIO
Manufacturer Part NoACPS-GB-AU
Newark Part No.23AC1125
Product RangeM Series
Technical Datasheet
241 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $5.870 |
| 10+ | $5.870 |
| 25+ | $5.870 |
| 50+ | $5.870 |
| 100+ | $5.870 |
| 250+ | $5.420 |
| 500+ | $5.420 |
| 1000+ | $5.420 |
Price for:Each
Minimum: 1
Multiple: 1
$5.87
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMPHENOL AUDIO
Manufacturer Part NoACPS-GB-AU
Newark Part No.23AC1125
Product RangeM Series
Technical Datasheet
No. of Contacts3Contacts
Pin Diameter6.35mm
Connector MountingCable Mount
Contact PlatingGold Plated Contacts
Connector Body MaterialZinc Alloy Body
Product RangeM Series
SVHCNo SVHC (17-Jan-2023)
Product Overview
The ACPS-GB-AU from Amphenol is a M series (musician range) 3 pole (tip ring sleeve) 1/4" stereo phone plug with solder termination.
- M series straight shell with matt black finish
- Die-cast shell, gold plated contacts, precision machined contacts
- Maximum wire gauge is 18AWG (1mm²)(stranded wire)
- Flammability rating of insulating plastics is UL94V-0
- Current carrying capacity is 10A(depends on mating connector and cable)
- Insulation resistance (initial) is <gt/>2Gohm, dielectric strength is 1000VDC
- Operating temperature range from -25°C to +70°C (-13°F to +158°F), protection class is IP40
- Minimum mating cycles is 1000 without any physical damage
- Cable outer dimension is 3mm to 6.5mm (0.118” to 0.256”)
Applications
Audio
Technical Specifications
No. of Contacts
3Contacts
Pin Diameter
6.35mm
Contact Plating
Gold Plated Contacts
Product Range
M Series
Gender
Plug
Connector Mounting
Cable Mount
Connector Body Material
Zinc Alloy Body
SVHC
No SVHC (17-Jan-2023)
