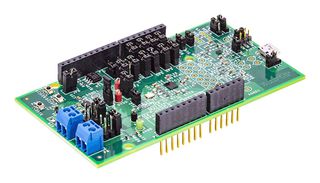

EVAL-AD5940BIOZ

EVAL-AD5940BIOZ is a bio-electric evaluation board. The AD5940 is specifically designed for bio-impedance applications including Body Impedance Analysis (BIA) and Electrodermal Activity (EDA), Electrocardiogram (ECG) and body impedance analysis (2-wire) (BIOZ-2Wire). This evaluation kit includes the EVAL-ADICUP3029 Arm® Cortex™-M3 microcontroller based Arduino Uno form factor board, the EVAL-AD5940BIOZ which contains the AD5940 for bio-impedance and the AD8233 for ECG measurements and also custom micro USB - ECG snap connectors.

• Platform is an Arduino UNO form factor base board

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
