EVAL-ADUM3165EBZ
EVALUATION BOARD, USB PORT ISOLATOR

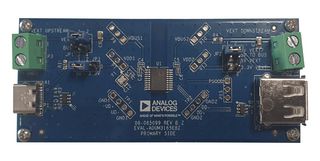

Image is for illustrative purposes only. Please refer to product description.
ManufacturerANALOG DEVICES
Manufacturer Part NoEVAL-ADUM3165EBZ
Newark Part No.07AM7370
Technical Datasheet
2 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
View cut-off times
| Quantity | Price |
|---|---|
| 1+ | $70.760 |
Price for:Each
Minimum: 1
Multiple: 1
$70.76
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerANALOG DEVICES
Manufacturer Part NoEVAL-ADUM3165EBZ
Newark Part No.07AM7370
Technical Datasheet
Kit Application TypeInterface
Application Sub TypeUSB Port Isolator
Silicon ManufacturerAnalog Devices
Silicon Core NumberADUM3165BRSZ
Product Range-
Kit ContentsEvaluation Board ADUM3165BRSZ
SVHCNo SVHC (25-Jun-2025)
Product Overview
EVAL-ADUM3165EBZ is an evaluation board that allows quick and easy evaluation of the ADuM3165 USB isolators, allowing direct connection to USB hosts and peripherals without the need for additional components. The ADuM3165 employ Analog Devices, Inc., iCoupler® technology to combine isolator channels, USB transceivers, power and timing circuits, control logic and internal terminations, pull-ups, and pull-downs into a single, 20-lead, compact shrink small outline package (SSOP).
- Supports USB 2.0 data transfer ( Low/Full /High speed (1.5Mbps/12Mbps/480Mbps)
- Upstream 5V power from cable or external supply
- Accepts 3.3V or 5V external supplies
- PGOOD (power good) indicator on downstream side
- Option to connect test points
- 20-lead SSOP package option with 5.3mm creepage
Technical Specifications
Kit Application Type
Interface
Silicon Manufacturer
Analog Devices
Product Range
-
SVHC
No SVHC (25-Jun-2025)
Application Sub Type
USB Port Isolator
Silicon Core Number
ADUM3165BRSZ
Kit Contents
Evaluation Board ADUM3165BRSZ
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
