MAX1724EVKIT+

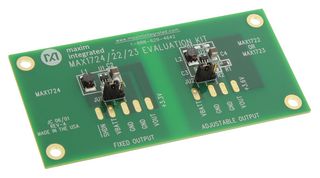

The MAX1724EVKIT+ is a MAX1724 evaluation kit (EV kit). It is a fully assembled and tested surface mount circuit board that contains two separate boost switching-regulator circuits. The left-side circuit contains a MAX1724 with a preset 3.3V output. Other preset voltages of 2.7V, 3.0V or 5.0V are also available. The right-side circuit contains a MAX1722 which has an adjustable output voltage. This circuit’s output is set for 3.6V. The MAX1724 has a BATT pin which lowers the guaranteed start-up voltage from 1.2V to 0.91V. Typical applications include digital still cameras, low-power handheld instruments, MP3 players, pagers, PDAs and other handheld devices, personal medical devices, remote controls, remote wireless transmitters and single-cell battery-powered devices.

• 0.91V to VOUT input voltage range
• Two complete boost circuits
• Up to 50mA output from a 1-cell input
• Up to 100mA output from a 2-cell input
• 1.5µA quiescent current from VOUT
• Up to 90% efficiency with synchronous rectification
• Switching frequency up to 200KHz
• All surface-mount design
• 0°C to +70°C operating temperature
• Thin SOT23-5 IC package
• Digital Still Cameras; Low-Power Handheld Instruments; MP3 Players; Pagers; PDAs and Other Handheld Devices;
• Personal Medical Devices; Remote Controls; Remote Wireless Transmitters; Single-Cell Battery-Powered Devices
