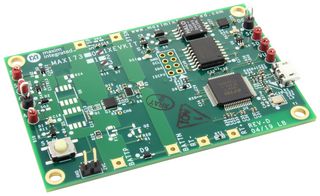

MAX17313XEVKIT#
EVAL BOARD, BATTERY, FUEL GAUGE
- Manufacturer:
- ANALOG DEVICES ANALOG DEVICES
- Manufacturer Part No:
- MAX17313XEVKIT#
- Newark Part No.:
- 17AH9191
- Technical Datasheet:
- MAX17313XEVKIT# Datasheet
Product Overview
- Evaluation kit for the MAX17313 1-Cell ModelGauge™ m5 EZ fuel gauge with 1-level protector
- ModelGauge™ m5 algorithm
- Monitors single-cell packs
- Full protection solution on-board for evaluation
- Battery pack input voltage range of +2.3V to +4.9V with default hardware
- Default current range from -5A to +5A, up to 10A with less than 5mohm sense resistor
- Thermistor measurement network
- On-board 1-Wire communication interface
- Windows 7 or newer compatible software
- Proven PCB layout, fully assembled and tested
Contents
MAX17313 evaluation board, USB micro-B cable.
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Power Management - Battery
- :
- Fuel Gauge
- :
- MAX17313X+
- :
- Analog Devices
- :
- Eval Board MAX17313X+, USB Micro-B Cable
- :
- -
