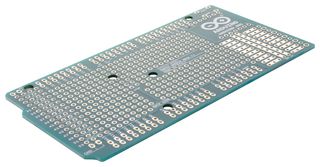

Prototyping Shield, Arduino Mega, Rev3, 101.5 x 53.3 mm
Image is for illustrative purposes only. Please refer to product description.
No Longer Available
Product Information
ManufacturerARDUINO
Manufacturer Part NoA000080
Newark Part No.63W3546
Technical Datasheet
Silicon Manufacturer-
Core Architecture-
Core Sub-Architecture-
Silicon Core Number-
Silicon Family Name-
For Use WithArduino MEGA Development Boards
Kit ContentsPrototyping Board
Product Range-
SVHCNo SVHC (27-Jun-2024)
Product Overview
The A000080 is an Arduino MEGA Proto Shield Rev3 PCB. It makes easy for user to design their custom circuits. The user can solder parts to the prototyping area to create their project or use it with a small solderless breadboard to quickly test circuit ideas without solder. The PCB has extra connections for all of the Arduino I/O pins and has a space to mount through hole and surface mount integrated circuits. It's a convenient way for the user to make own custom circuit and Arduino MEGA into a single module.
- Board size is 101.52mm x 53.3mm
- ICSP header and two 14 pin SOIC prototyping areas
- Long and easy shield to solder ground/5V rails
Applications
Embedded Design & Development, Hobby & Education
