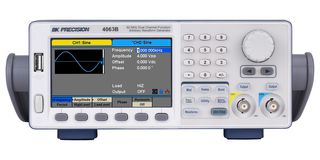

4063B

This Dual Channel Function/Arbitrary Waveform Generator is capable of producing precise sine, square, triangle, pulse, and arbitrary waveforms. It combines the cost saving benefits of both DDS and true point-by-point arbitrary architectures to meet a wide range of applications that require high signal fidelity and low jitter arbitrary waveform generation capabilities. The arbitrary waveform generator (AWG) architecture can be toggled between conventional DDS or true arbitrary mode. Compared to DDS, true point-by-point AWG implementation offers improved signal integrity by producing lower jitter and less distortion.

• 4.3” LCD touchscreen display
• 16-bit resolution, 8 Mpts, 300 MSa/s (DDS), 75 MSa/s (true point-by-point) arbitrary waveform generator
• Up to 1.2 GSa/s sample rate for sine, square, triangle, and pulse waveforms
• Two independent channels with one-button phase synchronization
• Channel copy, track, and waveform combine functions
• Generate sine waves from 1µHz to 80MHz, Square wave to 25MHz
• Harmonic generator function
• Linear sweep, logarithmic sweep, and burst functions
• Precise pulse width and rise/fall time adjustments
• Supports AM/DSB-AM/FM//PM/PSK/FSK/ASK and PWM modulation types
• DC signal level up to ±10 V into a high-z load or ±5 V into a 50 Ω load
• Variable DC offset
• Adjustable duty cycle
• Frequency counter
• Internal/external triggering
• 196 built-in predefined arbitrary waveforms
• Store/recall up to 10 instrument settings
• LAN and USB device port (USBTMC-compliant), front panel USB host port and optional GPIB connectivity
• Arbitrary waveform editing software included
• LabVIEW™ driver is available

Applications

Test & Instrumentation, Test & Measurement
