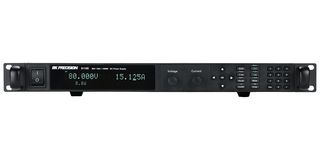

9115B

9115B is a 1200W multi-range power supply without GPIB. This multi-range power supply automatically recalculates voltage and current limits for each setting, providing full output power in any Volt/Amp combination within the rated voltage and current limits. For benchtop applications, this series provides a numerical keypad for direct data entry along with convenient cursors and analog-style knobs to quickly make incremental voltage or current changes. Systems integrators benefit from the standard USB (USBTMC-compliant), RS232, and RS485 interfaces supporting SCPI commands.

• Multi-ranging operation (output up to max power rating within maximum voltage and current rating)
• Compact, high density, 1U rackmount form factor (2U for 9117)
• High programming and readback resolution, adjustable voltage rise and fall times
• Store and recall up to 100 instrument settings
• Analog interface with control and monitoring functions, remote sense
• Overvoltage protection, overpower protection, overtemperature protection, and key-lock function
• Softpanel for remote control, test sequence generation, and data logging
• 80V maximum voltage, 60A maximum current, 1200W maximum power
• USB, RS232, RS485, analog interface, 0ºC to 40ºC operating temperature
• Dimension is 16.32” x 1.75” x 19.02” (W x H x D)

Contents

Power supply, User manual, AC power cord, Rackmount kit, Certificate of calibration.
