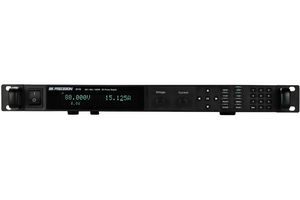

9116

The 9116 is a 9115 Series 30A/150V 1.2kW programmable DC Power Supply with multi-ranging operation, high programming and readback resolution, adjustable voltage slope (rise and fall times), sequence programming, save and recall up to 100 instrument settings, Standard USB, RS-232, GPIB and RS-485 interfaces, analogue interface with control and monitoring functions, remote sense, overvoltage/overpower/over-temperature protection and key-lock function, soft panel for remote control, test sequence generation and data logging. Compact, high density, 1U rack mount form factor. This power supply provides a numerical keypad for direct data entry along with convenient cursors and analogue style knobs to quickly make incremental voltage or current changes. This software also integrates with data dashboard for LabVIEW apps enabling iOS, Android or Windows 8 compatible tablets or smart phones to remotely monitor select measurement indicators. Suitable for bench top applications.

• 0 to 40°C operating temperature range

Contents

Programmable DC power supply, User manual, Power cord, Certificate of calibration and Test report.
