9202B

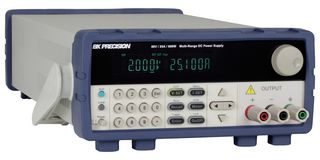

9200B series multi-range programmable DC power supply. Replace multiple supplies on bench or in rack. The 9200B series automatically recalculates voltage and current limits for each setting. Supply provides numerical keypad for direct entry of voltage and current values along with convenient cursors and a rotary knob to quickly make incremental voltage and current changes. NI certified LabVIEW™ driver and softpanel for remote control, test sequence generation, and datalogging available. It is suitable for a wide range of applications including production testing, R&D, electronic field service and education.

• 60V max voltage, 15A max current and 360W max power
• Multi-ranging operation
• Store and recall up to 72 instrument settings
• Output timer function, list mode programming, remote sense
• Standard USB (USBTMC-compliant) and RS232 interfaces supporting SCPI commands for remote control
• Thermostatically controlled fan and built-in digital voltmeter (DVM)
• Overvoltage/overpower/overtemperature protection and key-lock function
• Compact 19” half-rack form factor allows for side by side rack mounting of two units

Contents

Programmable DC power supply, User manual, Power cord, Certificate of calibration.
