1189A 0101000
Coaxial Cable, Quad Shield CATV, RG6, 18 AWG, 75 ohm, 1000 ft, 304.8 m

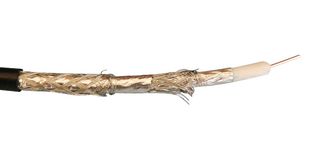

Image is for illustrative purposes only. Please refer to product description.
6 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown
| Quantity | Price |
|---|---|
| 1+ | $299.580 |
| 5+ | $299.580 |
| 10+ | $299.580 |
Price for:Spool of 1000
Minimum: 1
Multiple: 1
$299.58
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBELDEN
Manufacturer Part No1189A 0101000
Newark Part No.05F1782
Technical Datasheet
Coaxial Cable TypeRG6
Wire Gauge18AWG
Conductor Area CSA-
Impedance75ohm
Reel Length (Imperial)1000ft
Reel Length (Metric)304.8m
Jacket ColorBlack
Jacket MaterialPVC
Conductor MaterialSteel
No. of Max Strands x Strand SizeSolid
External Diameter7.468mm
Product Range-
SVHCNo SVHC (10-Jun-2022)
Alternatives for 1189A 0101000
1 Product Found
Product Overview
The 1189A 0101000 is a RG6/U Coaxial Cable with 0.04-inch bare copper-covered steel conductors, gas-injected foam polyethylene insulation, Duobond® IV quad shield (60% and 40% coverage) and PVC jacket.
- 0.097µH/ft nominal inductance
- 16.2pF/ft nominal capacitance conductor to shield
- 83% nominal velocity of propagation
- 1.2ns/ft nominal delay
Applications
Industrial
Technical Specifications
Coaxial Cable Type
RG6
Conductor Area CSA
-
Reel Length (Imperial)
1000ft
Jacket Color
Black
Conductor Material
Steel
External Diameter
7.468mm
SVHC
No SVHC (10-Jun-2022)
Wire Gauge
18AWG
Impedance
75ohm
Reel Length (Metric)
304.8m
Jacket Material
PVC
No. of Max Strands x Strand Size
Solid
Product Range
-
Technical Docs (1)
Associated Products
5 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (10-Jun-2022)
