MRG5801.10100
Coaxial Cable, RG58, 50 ohm, 328 ft, 100 m

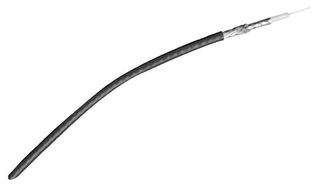

Image is for illustrative purposes only. Please refer to product description.
2 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $378.070 |
| 5+ | $350.610 |
| 10+ | $327.370 |
Price for:Each
Minimum: 1
Multiple: 1
$378.07
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBELDEN
Manufacturer Part NoMRG5801.10100
Newark Part No.58M9381
Technical Datasheet
Coaxial Cable TypeRG58
Wire Gauge-
Conductor Area CSA-
Impedance50ohm
Reel Length (Imperial)328ft
Reel Length (Metric)100m
Jacket ColorBlack
Jacket MaterialPE
Conductor MaterialTinned Copper
No. of Max Strands x Strand Size19 x 0.18mm
External Diameter4.95mm
Product Range-
SVHCNo SVHC (23-Jan-2024)
Product Overview
The MRG5801.00100 is a Coaxial Communication Cable with a stranded tinned copper inner conductor and a solid PE dielectric. The coaxial cable comes with a black LSNH (according the European Standard HD 624) sheath and annealed tinned copper shield. The coaxial cable is perhaps the most common, basic and easy-to-understand cables. Basically, this cable is used to transmit electrical energy or signals, from one location to another, to connect a source to a load, such as a transmitter to an antenna.
- 50 ±2Ω Mean characteristic impedance
- <gt/>40dB Regularity of impedance
- ≤36Ω/km DC resistance inner conductor
- 100 ±2pF/m Capacitance
- 66% Nominal velocity of propagation
- -15 to 70°C Storage/operating temperature range
Applications
Communications & Networking, Defence, Military & Aerospace
Technical Specifications
Coaxial Cable Type
RG58
Conductor Area CSA
-
Reel Length (Imperial)
328ft
Jacket Color
Black
Conductor Material
Tinned Copper
External Diameter
4.95mm
SVHC
No SVHC (23-Jan-2024)
Wire Gauge
-
Impedance
50ohm
Reel Length (Metric)
100m
Jacket Material
PE
No. of Max Strands x Strand Size
19 x 0.18mm
Product Range
-
Technical Docs (1)
Associated Products
4 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (23-Jan-2024)
