MF-ASML050/6-2
Resettable Fuse, PPTC, 0402 (1005 Metric), MF-ASML/X Series, 6 V, 500 mA, 1 A, 0.1 s

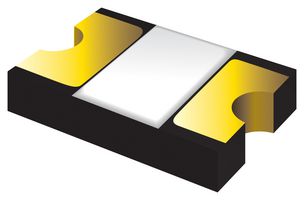

Image is for illustrative purposes only. Please refer to product description.
ManufacturerBOURNS
Manufacturer Part NoMF-ASML050/6-2
Newark Part No.33AH9133
Product RangeMF-ASML/X Series
Technical Datasheet
5,960 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.919 |
| 25+ | $0.914 |
| 100+ | $0.774 |
| 250+ | $0.774 |
| 500+ | $0.774 |
| 1000+ | $0.774 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$0.92
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBOURNS
Manufacturer Part NoMF-ASML050/6-2
Newark Part No.33AH9133
Product RangeMF-ASML/X Series
Technical Datasheet
PPTC Case Style0402 (1005 Metric)
Product RangeMF-ASML/X Series
Voltage Rating6V
Holding Current500mA
Trip Current1A
Time to Trip0.1s
Current Rating Max50A
Operating Temperature Min-40°C
Operating Temperature Max85°C
Automotive Qualification Standard-
SVHCNo SVHC (21-Jan-2025)
Product Overview
MF-ASML050/6-2 is a MF-ASML/X series low Ohmic PTC resettable fuse. Application includes thermal protection for wearables, Li-ion and polymer battery packs, PC motherboards plug and play protection, mobile phones battery and charging protection, USB port protection, game console port protection.
- Surface mount packaging for automated assembly
- Tiny footprint size (0402) and low profile for space-constrained mobile applications
- Ultra-low resistance, quick response
- 6V voltage rating, 500mA holding current, 1A tripping current (at 23°C)
- 0.1s time to trip (at 23°C), 50A maximum current rating, 0.06ohm maximum DC resistance
- 10mm length, 10mm width, 6.5mm height
- Operating temperature range from -40°C to +85°C
Technical Specifications
PPTC Case Style
0402 (1005 Metric)
Voltage Rating
6V
Trip Current
1A
Current Rating Max
50A
Operating Temperature Max
85°C
SVHC
No SVHC (21-Jan-2025)
Product Range
MF-ASML/X Series
Holding Current
500mA
Time to Trip
0.1s
Operating Temperature Min
-40°C
Automotive Qualification Standard
-
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
