MF-GSMF300/36X-2

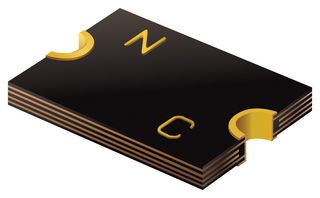

Resettable Fuse, PPTC, 3425 (8763 Metric), MF-GSMF Series, 36 V, 3 A, 5.2 A, 20 s
Image is for illustrative purposes only. Please refer to product description.
ManufacturerBOURNS
Manufacturer Part NoMF-GSMF300/36X-2
Newark Part No.33AH9145
Product RangeMF-GSMF Series
Technical Datasheet
2,740 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.969 |
| 25+ | $0.969 |
| 50+ | $0.900 |
| 100+ | $0.894 |
| 250+ | $0.894 |
| 500+ | $0.775 |
| 1000+ | $0.762 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$0.97
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBOURNS
Manufacturer Part NoMF-GSMF300/36X-2
Newark Part No.33AH9145
Product RangeMF-GSMF Series
Technical Datasheet
PPTC Case Style3425 (8763 Metric)
Product RangeMF-GSMF Series
Voltage Rating36V
Holding Current3A
Trip Current5.2A
Time to Trip20s
Current Rating Max20A
Operating Temperature Min-40°C
Operating Temperature Max85°C
Automotive Qualification Standard-
SVHCNo SVHC (21-Jan-2025)
Product Overview
MF-GSMF300/36X-2 is a MF-GSMF series Multifuse® freeXpansion™ Design PTC resettable fuse. Application includes telematics with CAN, Bluetooth, WLAN, GPS and UMTS/LTE, industrial controls, and IEEE ports.
- High power ratings, low profile, utilizes innovative freeXpansion™ design
- Surface mount packaging for automated assembly
- 36V maximum voltage rating, 20amps maximum current
- 3.0amps hold current (at 23°C), 5.2amps Itrip
- 0.01 to 0.06ohms (at 23°C) resistance range, max time to trip is 8.0amps (23°C), 20.0seconds (23°C)
- 1.5watts typ tripped power dissipation (23°C)
- Class 6 (per AEC-Q200-2, HBM) ESD classification
- Humidity aging is +85°C, 85% R.H. 1000 hours (±5% typical resistance change)
- Vmax, Imax, 100 cycles trip cycle life, Vmax, 48hours trip endurance
- Operating temperature range from -40°C to +85°C
Technical Specifications
PPTC Case Style
3425 (8763 Metric)
Voltage Rating
36V
Trip Current
5.2A
Current Rating Max
20A
Operating Temperature Max
85°C
SVHC
No SVHC (21-Jan-2025)
Product Range
MF-GSMF Series
Holding Current
3A
Time to Trip
20s
Operating Temperature Min
-40°C
Automotive Qualification Standard
-
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
