MF-PSHT050KX-2

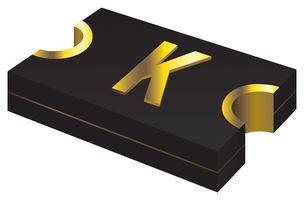

Resettable Fuse, PPTC, 0805 (2012 Metric), MF-PSHT Series, 12 V, 500 mA, 2 A, 0.1 s
Image is for illustrative purposes only. Please refer to product description.
ManufacturerBOURNS
Manufacturer Part NoMF-PSHT050KX-2
Newark Part No.33AH9156
Product RangeMF-PSHT Series
Technical Datasheet
1,117 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $1.500 |
| 25+ | $0.624 |
| 50+ | $0.582 |
| 100+ | $0.542 |
| 250+ | $0.504 |
| 500+ | $0.465 |
| 1000+ | $0.444 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$1.50
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBOURNS
Manufacturer Part NoMF-PSHT050KX-2
Newark Part No.33AH9156
Product RangeMF-PSHT Series
Technical Datasheet
PPTC Case Style0805 (2012 Metric)
Product RangeMF-PSHT Series
Voltage Rating12V
Holding Current500mA
Trip Current2A
Time to Trip0.1s
Current Rating Max40A
Operating Temperature Min-40°C
Operating Temperature Max125°C
Automotive Qualification StandardAEC-Q200
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
PPTC Case Style
0805 (2012 Metric)
Voltage Rating
12V
Trip Current
2A
Current Rating Max
40A
Operating Temperature Max
125°C
SVHC
No SVHC (21-Jan-2025)
Product Range
MF-PSHT Series
Holding Current
500mA
Time to Trip
0.1s
Operating Temperature Min
-40°C
Automotive Qualification Standard
AEC-Q200
