HCPL-091J-000E
Digital Isolator, 4, 15 ns, 5 V, 3 V, SOIC, 16 RoHS Compliant: Yes

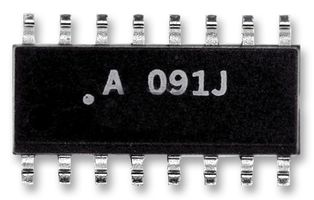

Image is for illustrative purposes only. Please refer to product description.
7 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $23.650 |
| 10+ | $19.370 |
| 25+ | $18.520 |
| 50+ | $17.660 |
| 100+ | $17.130 |
| 250+ | $16.570 |
| 500+ | $16.230 |
Price for:Each
Minimum: 1
Multiple: 1
$23.65
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerBROADCOM
Manufacturer Part NoHCPL-091J-000E
Newark Part No.58Y4711
Technical Datasheet
No. of Channels4Channels
No. of Channels4 Channel
Propagation Delay15ns
Supply Voltage Min5V
Supply Voltage Max3V
IC Case / PackageSOIC
No. of Pins16Pins
Interface Case StyleSOIC
Data Rate110Mbaud
Input LevelCMOS, TTL
Output LevelCMOS, TTL
Isolation IC TypeHigh Speed CMOS Digital Isolator
Isolation TypeGalvanic
Isolation Voltage2.5kV
Operating Temperature Min-40°C
Operating Temperature Max100°C
Product Range-
Qualification-
MSL-
SVHCNo SVHC (23-Jan-2024)
Technical Specifications
No. of Channels
4Channels
Propagation Delay
15ns
Supply Voltage Max
3V
No. of Pins
16Pins
Data Rate
110Mbaud
Output Level
CMOS, TTL
Isolation Type
Galvanic
Operating Temperature Min
-40°C
Product Range
-
MSL
-
No. of Channels
4 Channel
Supply Voltage Min
5V
IC Case / Package
SOIC
Interface Case Style
SOIC
Input Level
CMOS, TTL
Isolation IC Type
High Speed CMOS Digital Isolator
Isolation Voltage
2.5kV
Operating Temperature Max
100°C
Qualification
-
SVHC
No SVHC (23-Jan-2024)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (23-Jan-2024)
