NF-6610
Plastic Enclosure, NEMA 4X Fiberglass, Screwed, Cover, Wall Mount, Fiberglass, 196.9 mm, 197 mm
Image is for illustrative purposes only. Please refer to product description.
172 In Stock
Delivery in 2-3 Business days(Supplier Direct Ship)
Order before 8pm EST Standard Shipping
| Quantity | Price |
|---|---|
| 1+ | $102.940 |
| 5+ | $100.040 |
| 10+ | $97.430 |
| 25+ | $95.180 |
Price for:Each
Minimum: 1
Multiple: 1
$102.94
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBUD INDUSTRIES
Manufacturer Part NoNF-6610
Newark Part No.34M2296
Technical Datasheet
Enclosure TypeWall Mount
Enclosure MaterialFiberglass
External Height - Metric196.9mm
External Width - Metric197mm
External Depth - Metric122mm
IP RatingIP65
Body ColorGray
NEMA RatingNEMA 1, 2, 4, 4X, 12, 13
External Height - Imperial7.8"
External Width - Imperial7.8"
External Depth - Imperial4.8"
Product Range-
SVHCNo SVHC (07-Nov-2024)
Product Overview

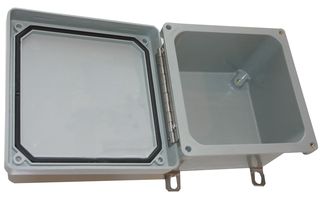

NF-6610 is a fiberglass enclosure with hinged screw-down cover.
- External dimension is 7.74" x 7.74" x 4.57", internal dimension is 6.01" x 6.01" x 4.3" (L x W x D)
- Durable and easy to machine fiberglass reinforced plastic
- Features stainless steel screw type lid closure
- Provides outstanding protection against corrosion
- Chemical resistant and impervious to dents
- Designed to meet NEMA 1, 2, 4, 4X, 12, 13, and IP65 specifications
- Stainless steel hinge, screws, and wall mounting brackets
- Includes powder coated 14 ga. steel removable inner panel
- UL listed and tested to UL508-4X requirements - UL File E194432
- Finish: light gray
Technical Specifications
Enclosure Type
Wall Mount
External Height - Metric
196.9mm
External Depth - Metric
122mm
Body Color
Gray
External Height - Imperial
7.8"
External Depth - Imperial
4.8"
SVHC
No SVHC (07-Nov-2024)
Enclosure Material
Fiberglass
External Width - Metric
197mm
IP Rating
IP65
NEMA Rating
NEMA 1, 2, 4, 4X, 12, 13
External Width - Imperial
7.8"
Product Range
-
Associated Products
3 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Nov-2024)
