F2UEEAU
Industrial Pushbutton Switch, F Series, DPDT, Push-Push, Round

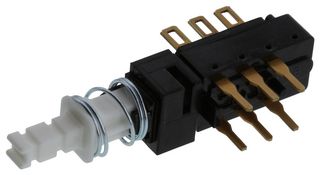

Image is for illustrative purposes only. Please refer to product description.
ManufacturerC&K COMPONENTS
Manufacturer Part NoF2UEEAU
Newark Part No.35AH0452
Product RangeF Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 15 week(s)
Product Information
ManufacturerC&K COMPONENTS
Manufacturer Part NoF2UEEAU
Newark Part No.35AH0452
Product RangeF Series
Technical Datasheet
Product RangeF Series
Panel Cutout Diameter-
Contact ConfigurationDPDT
Switch OperationPush-Push
Pushbutton Actuator StyleRound
Actuator / Cap Colour-
Contact Current AC Max40mA
Contact Voltage VAC50V
Contact Current DC Max10mA
IP Rating-
Contact Voltage VDC30V
Switch MountingThrough Hole
Switch TerminalsPC Pin, Solder Lug
Illumination ColorNon Illuminated
Panel Cutout (H x W)-
SVHCNo SVHC (10-Jun-2022)
Technical Specifications
Product Range
F Series
Contact Configuration
DPDT
Pushbutton Actuator Style
Round
Contact Current AC Max
40mA
Contact Current DC Max
10mA
Contact Voltage VDC
30V
Switch Terminals
PC Pin, Solder Lug
Panel Cutout (H x W)
-
Panel Cutout Diameter
-
Switch Operation
Push-Push
Actuator / Cap Colour
-
Contact Voltage VAC
50V
IP Rating
-
Switch Mounting
Through Hole
Illumination Color
Non Illuminated
SVHC
No SVHC (10-Jun-2022)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (10-Jun-2022)
