CT3020-100-2
Banana Test Lead, 4mm Banana Plug, Shrouded, 4mm Banana Plug, Shrouded, 39.5 ", 1 m, Red, 10 A

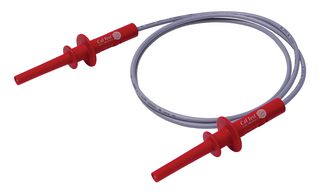

Image is for illustrative purposes only. Please refer to product description.
ManufacturerCAL TEST ELECTRONICS
Manufacturer Part NoCT3020-100-2
Newark Part No.76AH6658
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 9 week(s)
| Quantity | Price |
|---|---|
| 1+ | $25.440 |
Price for:Each
Minimum: 1
Multiple: 1
$25.44
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerCAL TEST ELECTRONICS
Manufacturer Part NoCT3020-100-2
Newark Part No.76AH6658
Technical Datasheet
Test Connector Type A4mm Banana Plug, Shrouded
Test Connector Type B4mm Banana Plug, Shrouded
Lead Length - Imperial39.5"
Lead Length - Metric1m
Insulator ColourRed
Current Rating10A
Voltage Rating5kV
Product Range-
Product Overview
Due to the extended banana plug length, the double-ended Cal Test CT3020 operates up to 5 kV when used in non-category environments with transient overvoltages up to 2 kV. The test lead is also rated to 1,000 V CAT IV. The CT3020 comes with a specially designed 4 mm long-reach sheathed banana plug and a special high voltage, highly flexible test lead wire, which allows it to interface with the Cal Test Electronics 5kV, 4mm Sheathed Banana Jack Series.
- 4mm long‐reach sheathed banana plug test lead
- Maximum 10A current
- 1KV CAT IV rated
- 100mm length
- PVC red jacket
- Operates up to 5KV when used in non-category environments with transient overvoltages up to 2KV
Technical Specifications
Test Connector Type A
4mm Banana Plug, Shrouded
Lead Length - Imperial
39.5"
Insulator Colour
Red
Voltage Rating
5kV
SVHC
No SVHC (17-Jan-2023)
Test Connector Type B
4mm Banana Plug, Shrouded
Lead Length - Metric
1m
Current Rating
10A
Product Range
-
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2023)
