5503-24-1
Reed Relay, SPST-NO, 24 VDC, 5500 Series, Through Hole, 575 ohm, 3 A

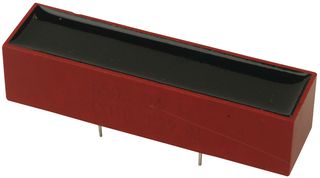

Image is for illustrative purposes only. Please refer to product description.
ManufacturerCOTO TECHNOLOGY
Manufacturer Part No5503-24-1
Newark Part No.29H2332
Product Range5500 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 86 week(s)
| Quantity | Price |
|---|---|
| 100+ | $48.870 |
Price for:Each
Minimum: 105
Multiple: 21
$5,131.35
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerCOTO TECHNOLOGY
Manufacturer Part No5503-24-1
Newark Part No.29H2332
Product Range5500 Series
Technical Datasheet
Contact ConfigurationSPST-NO
Coil Voltage24VDC
Product Range5500 Series
Relay MountingThrough Hole
Coil Resistance575ohm
Switching Current Max3A
Switching Voltage Max3.5kV
SVHC1,6,7,8,9,14,15,16,17,17,18,18-Dodecachloropentacyclo[12.2.1.16,9.02,13.05,10]octadeca-7,15-diene
Product Overview
The 5503-24-1 is a high voltage Reed Relay with hermetically sealed tungsten contacts for long life and SPST-NO contact configuration. The 5500 series load switching high voltage reed relay is ideally suited to the needs of instrumentation, industrial process controls and general-purpose requirements.
- Magnetic shield standard
- 10000V Isolation across contacts high dielectric strength
- 5A Carry current
- 200W High contact rating
- 0.200Ω at 0.5V/10mA Maximum initial static contact resistance
- 10¹⁰Ω at 100V/25°C/40% RH (between all isolated pins) Minimum insulation resistance
- 3ms Operate and release time
Applications
Sensing & Instrumentation, Industrial, Automation & Process Control
Technical Specifications
Contact Configuration
SPST-NO
Product Range
5500 Series
Coil Resistance
575ohm
Switching Voltage Max
3.5kV
Coil Voltage
24VDC
Relay Mounting
Through Hole
Switching Current Max
3A
SVHC
1,6,7,8,9,14,15,16,17,17,18,18-Dodecachloropentacyclo[12.2.1.16,9.02,13.05,10]octadeca-7,15-diene
