XTEARY-02-0000-000000L01

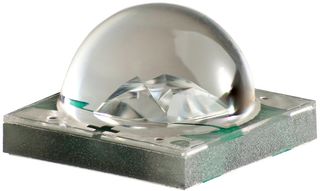

The XLamp XT-E series LED is optimized for directional, high-lumen applications, from indoor and outdoor to portable and lamp retrofits, the XLamp® XT-E LED delivers high performance and high reliability in the industry-standard XP/XT footprint. The XT-E LED offers the benefits of the XT/XP platform, compact and proven 3.45 x 3.45mm package and established ecosystem, enabling lighting manufacturers to simplify the design process and shorten time to market. The XT-E LED is available in royal blue and white. The XT-E White LED offers a high-efficacy option. In this document, the term white denotes the white XT-E LED without regard to its efficacy. The terms standard and high Efficacy are used when necessary to differentiate the performance of the high efficacy XT-E LED from the XT-E LED without the high-efficacy option.

• Available in 70-, 80- and 90-CRI minimum white
• Binned at 85 °C
• Available in 2200K CCT
• 5°C/W Thermal resistance
• 115 to 140° Wide viewing angle
• 1.5A (white), 1.0A (royal blue) Maximum drive current
• Electrically neutral thermal path
• Vf binning supported for XT-E white and royal blue
• XT-E royal blue sorted into 2.5nm wavelength bins
• Unlimited floor life at ≤30°C/85% RH
• Reflow solderable, JEDEC J-STD-020C compatible
• REACH compliant
• UL recognized component (E349212)

Applications

LED Lighting, Industrial, Agriculture, Portable Devices
