99792810

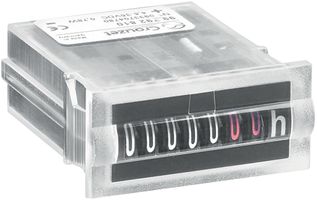

Counter, Hour Meter, CHM15 Series, 7 Digits, 15 x 32 mm, 4.5 Vdc to 35 Vdc
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 14 week(s)
| Quantity | Price |
|---|---|
| 1+ | $62.350 |
Price for:Each
Minimum: 1
Multiple: 1
$62.35
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerCROUZET
Manufacturer Part No99792810
Newark Part No.55W2167
Technical Datasheet
No. of Digits / Alpha7
Digit Height4mm
Supply Voltage Min4.5VDC
Supply Voltage Max35VDC
Panel Cutout Height13mm
Panel Cutout Width30mm
Operating Temperature Min-10°C
Operating Temperature Max60°C
Product Range-
SVHCNo SVHC (10-Jun-2022)
Technical Specifications
No. of Digits / Alpha
7
Supply Voltage Min
4.5VDC
Panel Cutout Height
13mm
Operating Temperature Min
-10°C
Product Range
-
Digit Height
4mm
Supply Voltage Max
35VDC
Panel Cutout Width
30mm
Operating Temperature Max
60°C
SVHC
No SVHC (10-Jun-2022)
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (10-Jun-2022)
