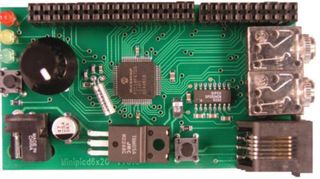

PIC18F6722 DEV KIT -BOARD ONLY

PIC18F6722 DEV KIT -BOARD ONLY is an development board for PIC18F6722 MCU. The PIC18F6722 MCU is Ideal for large low power (nanoWatt) and connectivity applications that benefit from the availability of four serial ports double synchronous serial ports (I2C and SPI) and double asynchronous (LIN capable) serial ports. Large amounts of RAM memory for buffering and flash program memory make it ideal for instrumentation panels, TCP/IP enabled embedded applications as well as metering and industrial control and monitoring applications. While operating up to 40MHz, it is also backward software and hardware compatible with the PIC18F6722.

• PIC18F6722 MCU
• 48 I/O pins (11 can be analog)
• One potentiometer
• One push button
• Three LEDs
• RS232 level converter connected to the C6/C7 UART and G1/G2 UART
• ICD Jack

Applications

Industrial, Metering, Sensing & Instrumentation, System Monitoring
