19655

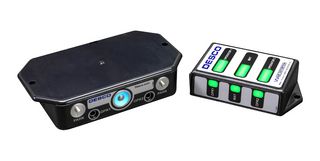

19655 is a dual operator workstation continuous monitor continuously monitors the path-to-ground integrity of two operators and one ESD work surface. The Wave distortion technology provides stable continuous monitoring (versus pulsed or intermittent) of the wrist strap’s path-to-ground and the presence of its 1 megohm safety resistor. Alarms when the operator unintentionally disconnects from the monitor or the connection between the banana plug and monitor’s jack is intermittent. The park delay timer indicates the 8 second delay to disconnect and park the operator wrist cord. The visual status displays the operators’ and work surface status: illuminates red when intermittent or failed connection occurs.

• Mat monitor switch disables work surface monitor circuit when used in areas of no ESD work surface
• Audible alarm adjustment sets the audible alarm volume from loud to louder
• Park snap allows operator to disconnect a wrist strap when leaving workstation without false alarm
• Single-wire impedance design meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-0
• 1.2Volt operator test voltage reduces the risk of EOS for the handling of sensitive components
