                      1. Home
                      2. Connectors
                      3. Automotive Connectors & Components
                      4. Automotive Connector Housings
                      Print Page

                      DTHD06-1-8S

                      Automotive Connector Housing, DTHD Series, Plug, 1 Positions

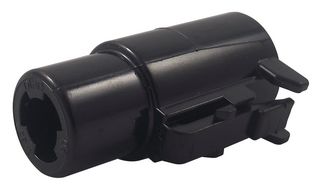

                      DEUTSCH - TE CONNECTIVITY DTHD06-1-8S
                      DEUTSCH - TE CONNECTIVITY DTHD06-1-8S
                      DEUTSCH - TE CONNECTIVITY DTHD06-1-8S
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerDEUTSCH - TE CONNECTIVITY
                      Manufacturer Part NoDTHD06-1-8S
                      Newark Part No.52Y0892
                      Product RangeDTHD
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      1,117 In Stock

                      Need more?

                      127 Delivery in 1-3 Business Days(US stock)
                      990 Delivery in 2-4 Business Days(UK stock)
                      Order before 9pm EST Standard Shipping
                      QuantityPrice
                      1+$6.930
                      10+$6.670
                      25+$6.450
                      50+$6.270
                      100+$6.100
                      250+$5.980
                      500+$5.860
                      Price for:Each
                      Minimum: 1
                      Multiple: 1
                      $6.93
                      Enter Your Part No/Line Note
                      Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                      This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                      Product Information

                      ManufacturerDEUTSCH - TE CONNECTIVITY
                      Manufacturer Part NoDTHD06-1-8S
                      Newark Part No.52Y0892
                      Product RangeDTHD
                      Technical Datasheet

                      Data Sheet

                      Product RangeDTHD
                      GenderPlug(View Associated Connectors)
                      No. of Positions1Positions
                      For Use WithDeutsch DTHD Series Size 8 Socket Contacts
                      Connector Body MaterialThermoplastic Body
                      IP RatingIP67
                      IP RatingIP67
                      Voltage Rating250V
                      Current Rating25A
                      SVHCDecamethylcyclopentasiloxane (21-Jan-2025)

                      Product Overview

                      The DTHD series 1-terminal Connector for use with the heavy-duty applications. Easy to install, environmentally sealed and compact in size, it is a simple, field serviceable alternative to a splice. DTHD connector is available in three sizes, carry 25 to 100A and can be mounted or used in-line. Two different solutions are available for applications that require heavy duty single terminal connections. The DEUTSCH DTHD series and jiffy splices provide environmentally sealed field-serviceable connections for the full range of wire gauges covered by the DEUTSCH contacts. The DTHD connector is heavy-duty power terminations for in-line and mounted applications. Jiffy splices are lightweight in-line splices for quick connections. Both options provide easy installation and service with standard tools and contacts.

                      Applications

                      Industrial

                      Technical Specifications

                      Product Range

                      DTHD

                      No. of Positions

                      1Positions

                      Connector Body Material

                      Thermoplastic Body

                      IP Rating

                      IP67

                      Current Rating

                      25A

                      Gender

                      Plug

                      For Use With

                      Deutsch DTHD Series Size 8 Socket Contacts

                      IP Rating

                      IP67

                      Voltage Rating

                      250V

                      SVHC

                      Decamethylcyclopentasiloxane (21-Jan-2025)

                      Technical Docs (3)

                      Drawing EN

                      Manufacturer Catalogue EN

                      Technical Data Sheet EN

                      Associated Products

                      2 Products Found

                      Legislation and Environmental

                      US ECCN:EAR99
                      EU ECCN:Unknown
                      RoHS Compliant:Yes

                      RoHS

                      RoHS Phthalates Compliant:Yes

                      RoHS

                      SVHC:Decamethylcyclopentasiloxane (21-Jan-2025)
