WM-12P

Connector Accessory, Wedgelock, DTM Series 12 Way Receptacle Connectors

DEUTSCH - TE CONNECTIVITY WM-12P
×
×

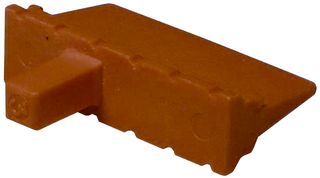

The actual product may differ from image shown

Manufacturer Part No:
WM-12P
Newark Part No.:
27W2223
Technical Datasheet:
WM-12P   Datasheet
See all Technical Docs

Product Overview

The WM-12P is a Wedgelock made of orange thermoplastic. The DTM series wedgelock is fits to all DTM04-12P receptacles. The wedgelock ensures proper contact alignment within each connector. The secondary wedgelock is assembled at the mating interface and click into place. If by chance the secondary wedgelocks is not properly seated during assembly, it will be pressed into locked position during the mating of the connectors.
  • -55 to 125°C Operating temperature range

Applications

Industrial

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Wedgelock

:
DTM Series 12 Way Receptacle Connectors
