557-1502-203F

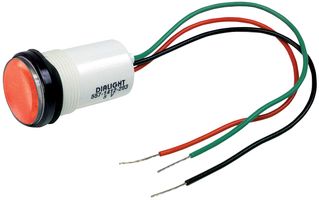

LED Panel Mount Indicator, Watertight, Red, 5 VDC, 17.463 mm, 80 mA, 1000 foot lambert, Not Rated
Image is for illustrative purposes only. Please refer to product description.
ManufacturerDIALIGHT
Manufacturer Part No557-1502-203F
Newark Part No.33M4322
Product Range557 Series
Technical Datasheet
73 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $16.050 |
| 5+ | $15.200 |
| 10+ | $14.350 |
| 25+ | $12.970 |
Price for:Each
Minimum: 1
Multiple: 1
$16.05
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerDIALIGHT
Manufacturer Part No557-1502-203F
Newark Part No.33M4322
Product Range557 Series
Technical Datasheet
LED ColorRed
Operating Voltage5VDC
Mounting Hole Dia17.463mm
Forward Current If80mA
Luminous Intensity1000foot lambert
IP / NEMA RatingNot Rated
Product Range557 Series
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 557-1502-203F is a red panel-mount LED Indicator with high intensity for 11/16-inch mounting hole. It is made of polycarbonate housing with lens. It incorporates both InGaN and AlInGaP technologies to offer higher intensities. It is designed to withstand outdoor applications susceptible to rain, dust and sunlight.
- Watertight seal from front of panel meets MIL-L-3661B
- 40in-lb Maximum mounting torque
- -25 to 85°C Operating temperature range
Applications
Industrial, Signalling, Safety, Consumer Electronics, Logistics
Technical Specifications
LED Color
Red
Mounting Hole Dia
17.463mm
Luminous Intensity
1000foot lambert
Product Range
557 Series
Operating Voltage
5VDC
Forward Current If
80mA
IP / NEMA Rating
Not Rated
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
