607-2212-110F

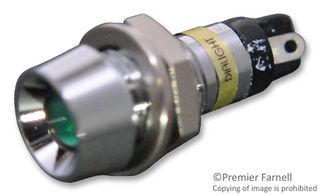

LED Panel Mount Indicator, Green, 2 VDC, 7.2 mm, 15 mA, 50 mcd, IP66
Image is for illustrative purposes only. Please refer to product description.
ManufacturerDIALIGHT
Manufacturer Part No607-2212-110F
Newark Part No.30K5083
Product Range607 Series
Technical Datasheet
18 In Stock
225 more incoming. You can reserve stock now
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $7.300 |
| 10+ | $5.050 |
| 25+ | $4.990 |
| 50+ | $4.920 |
| 100+ | $4.860 |
| 250+ | $4.750 |
| 500+ | $4.640 |
| 1000+ | $4.590 |
Price for:Each
Minimum: 1
Multiple: 1
$7.30
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerDIALIGHT
Manufacturer Part No607-2212-110F
Newark Part No.30K5083
Product Range607 Series
Technical Datasheet
LED ColorGreen
Operating Voltage2VDC
Mounting Hole Dia7.2mm
Forward Current If15mA
Luminous Intensity50mcd
IP / NEMA RatingIP66
Product Range607 Series
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 607-2212-110F is a green front panel mount LED Indicator made of brass housing with chrome-plated finish. It is suitable for 7.2mm mounting hole with optional watertight capability. It features lower power consumption - uses up to 90% less energy than an incandescent indicator. It also features electrical connection through solder terminals and lock washer and nut mounting method. Watertight Seal from front of panel meets NEMA 4X/IP66.
- Solder blade termination
- Recess LED position
- No heat generated
- Long Life - Typically 100K hours
Applications
LED Lighting
Technical Specifications
LED Color
Green
Mounting Hole Dia
7.2mm
Luminous Intensity
50mcd
Product Range
607 Series
Operating Voltage
2VDC
Forward Current If
15mA
IP / NEMA Rating
IP66
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Product traceability
