607-2312-120F

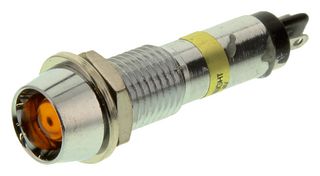

LED Panel Mount Indicator, Yellow, 6 VDC, 7.2 mm, 15 mA, 66 mcd, IP66
Image is for illustrative purposes only. Please refer to product description.
ManufacturerDIALIGHT
Manufacturer Part No607-2312-120F
Newark Part No.30K5087
Product Range607 Series
Technical Datasheet
8 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown
| Quantity | Price |
|---|---|
| 1+ | $9.900 |
| 5+ | $8.860 |
| 10+ | $7.800 |
| 25+ | $7.400 |
| 50+ | $7.020 |
| 100+ | $6.630 |
Price for:Each
Minimum: 1
Multiple: 1
$9.90
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerDIALIGHT
Manufacturer Part No607-2312-120F
Newark Part No.30K5087
Product Range607 Series
Technical Datasheet
LED ColorYellow
Operating Voltage6VDC
Mounting Hole Dia7.2mm
Forward Current If15mA
Luminous Intensity66mcd
IP / NEMA RatingIP66
Product Range607 Series
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 607-2312-120F is a yellow panel-mount LED Indicator made of chrome-plated brass housing. The low power consumption uses up to 90% less energy than an incandescent indicator.
- No heat generated
- Electrical connection through solder terminals
- Watertight seal from front of panel meets NEMA-4X/IP66
- Long life, lasting up to 100K hours
- -30 to 85°C Operating temperature range
Applications
Industrial, Signalling
Technical Specifications
LED Color
Yellow
Mounting Hole Dia
7.2mm
Luminous Intensity
66mcd
Product Range
607 Series
Operating Voltage
6VDC
Forward Current If
15mA
IP / NEMA Rating
IP66
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
