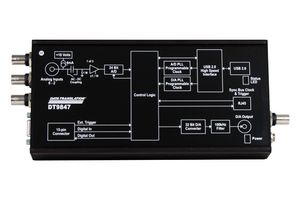

DIGILENT MCC DT9847-3-1

Vector Signal Analyzer, 3 Channel, 1 kHz to 216 kHz

DIGILENT MCC DT9847-3-1
×

The actual product may differ from image shown

Manufacturer:
DIGILENT DIGILENT
Manufacturer Part No:
MCC DT9847-3-1
Newark Part No.:
62AK4532
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Product Range
DT9847 Series
Technical Datasheet:
MCC DT9847-3-1   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Range Selector (DT9847 Series)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
-

:
-

:
-

:
-

:
3Channels

:
DT9847 Series

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (1)

Product Overview

DT9847-3-1 is a DT9847 series high-accuracy, dynamic signal acquisition module designed for sound and vibration applications. This USB-based, high-speed dynamic signal analyzer with three simultaneous 24-bit IEPE sensor inputs, up to 216ks/s/ch sample rate, one 32-bit analog output, and eight digital I/O. It features built-in IEPE signal conditioning for direct measurements from sensors like accelerometers and microphones. Combine the DT9847 with the ready-to-measure QuickDAQ application to create a powerful FFT Analyzer instrument. Additionally, all Data Translation devices include comprehensive driver and software support, and interface tools for LabVIEW™ and MATLAB® programmers.
  • Simultaneous analog input and analog output operations (continuous or waveform mode)
  • Operates on external USB power
  • Input range of ±10V with software-selectable gains of 1 and 10 for effective input range of ±10 & 1V
  • Support IEPE i/p including use of 4mA current source with 18V compliance voltage for AC/DC coupling
  • Supports a software-programmable trigger source to start the analog output operation
  • Internal clock source (shared between the analog input and analog output subsystems)
  • Sync bus (RJ45) connector for synchronizing acquisition on up to four DT9847 Series modules
  • Requires use of an external +5VDC to +24VDC power supply
  • Supported by Windows® 10/8/7/Vista® 32/64-bit OS

Contents

Dynamic signal analyzer, USB cable, Power supply 5VDC output, Printed insert: software quick start, MCC packaging assembly/foam, etc.
