EA-PS 9200-25 1U
Modular Power Supply, 1U, 1 Outputs, 1.5 kW, Programmable, 0 V, 200 V, 25 A

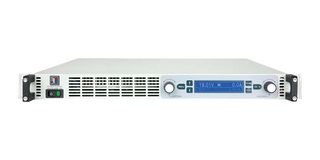

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEA ELEKTRO-AUTOMATIK
Manufacturer Part NoEA-PS 9200-25 1U
Newark Part No.58AK8660
Product RangeEA-PS 9000 1U Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 13 week(s)
| Quantity | Price |
|---|---|
| 1+ | $3,454.500 |
Price for:Each
Minimum: 1
Multiple: 1
$3,454.50
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerEA ELEKTRO-AUTOMATIK
Manufacturer Part NoEA-PS 9200-25 1U
Newark Part No.58AK8660
Product RangeEA-PS 9000 1U Series
Technical Datasheet
No. of Slots / Outputs1Outputs
Output Power Max1.5kW
Power Supply Output TypeProgrammable
Output Voltage Min0V
Output Voltage Max200V
Output Current Max25A
Product RangeEA-PS 9000 1U Series
SVHCNo SVHC (08-Jul-2021)
Product Overview
EA-PS 9200-25 1U is a PS 9000 1U series microprocessor-controlled laboratory power supply, making the use of this equipment remarkably easy and most effective. All this comes in a flat design with only 44mm (1.75”) of height. The clearly arranged control panel features two rotary knobs, six pushbuttons and two LEDs. Together with an illuminated, blue LCD display for all values and status it simplifies the use of the device.
- Wide AC supply voltage range from 100 to 264VAC with active PFC
- High efficiency up to 94%
- Output voltage of 200V, output current of 25A, output power rating of 1500W
- Flexible, power regulated output stage
- Various protection circuits (OVP, OCP, OPP, OTP)
- Control panel with pushbuttons and blue LCD for actual values, set values, status and alarms
- Remote sensing, share bus for support of parallel connection
- Galvanically isolated analog and digital (USB, Ethernet) interfaces
- Very low height of only 1U, temperature-controlled fans for cooling
- SCPI command set and ModBus RTU support, LabView VIs and control software for Windows
Technical Specifications
No. of Slots / Outputs
1Outputs
Power Supply Output Type
Programmable
Output Voltage Max
200V
Product Range
EA-PS 9000 1U Series
Output Power Max
1.5kW
Output Voltage Min
0V
Output Current Max
25A
SVHC
No SVHC (08-Jul-2021)
Technical Docs (1)
Legislation and Environmental
US ECCN:3A992A
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (08-Jul-2021)
