BK/MDA-25-R
Fuse, Cartridge, Time Delay, 25 A, 250 V, 6.3mm x 32mm, 1/4" x 1-1/4", MDA Series

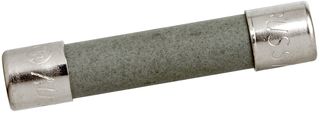

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEATON ELECTRONICS
Manufacturer Part NoBK/MDA-25-R
Newark Part No.48K9696
Product RangeMDA Series
Technical Datasheet
Available to Order
| Quantity | Price |
|---|---|
| 100+ | $4.380 |
| 250+ | $4.180 |
| 500+ | $3.860 |
| 1000+ | $3.700 |
Price for:Each
Minimum: 100
Multiple: 100
$438.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerEATON ELECTRONICS
Manufacturer Part NoBK/MDA-25-R
Newark Part No.48K9696
Product RangeMDA Series
Technical Datasheet
Blow CharacteristicTime Delay
Fuse Current25A
Fuse Size Metric6.3mm x 32mm
Fuse Size Imperial1/4" x 1-1/4"
Product RangeMDA Series
Breaking Capacity Current AC1.5kA
SVHCTo Be Advised
Product Overview
The BK/MDA-25A-R is a 25A Time-delay Fuse with ceramic tube and nickel-plated brass end caps. Ceramic body allows for higher amp/volt rating combinations. Inventory consolidation by replacing MDL fuses allows for reduced SKU investment and minimizing potential for misapplying fuse. The MDA fuse is designed to meet 248-14 standards.
- 0.00305Ω Typical DC cold resistance
Applications
Industrial
Technical Specifications
Blow Characteristic
Time Delay
Fuse Size Metric
6.3mm x 32mm
Product Range
MDA Series
SVHC
To Be Advised
Fuse Current
25A
Fuse Size Imperial
1/4" x 1-1/4"
Breaking Capacity Current AC
1.5kA
Technical Docs (2)
Alternatives for BK/MDA-25-R
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
